Apple Park details are difficult to understand from aerial photographs alone. From above, the headquarters is defined by its vast circular Ring. At ground level, its identity comes from smaller decisions: glass used as structure, rooflines that appear weightless, concealed joints, controlled reflections and landscaping designed to hide a building containing approximately 2.8 million square feet.
The main campus remains private, so most visitors experience Apple Park through the public Visitor Center and views from its roof terrace. Some of the campus’s most inventive architecture, including Steve Jobs Theater, is normally seen only by invited guests.
That limitation makes real-life observation especially revealing. Photographs communicate scale, but they often miss thickness, sound, reflected light and the way one material meets another. Apple Park’s design becomes most convincing at those meeting points.
Steve Jobs Theater Turns Glass Into Structure

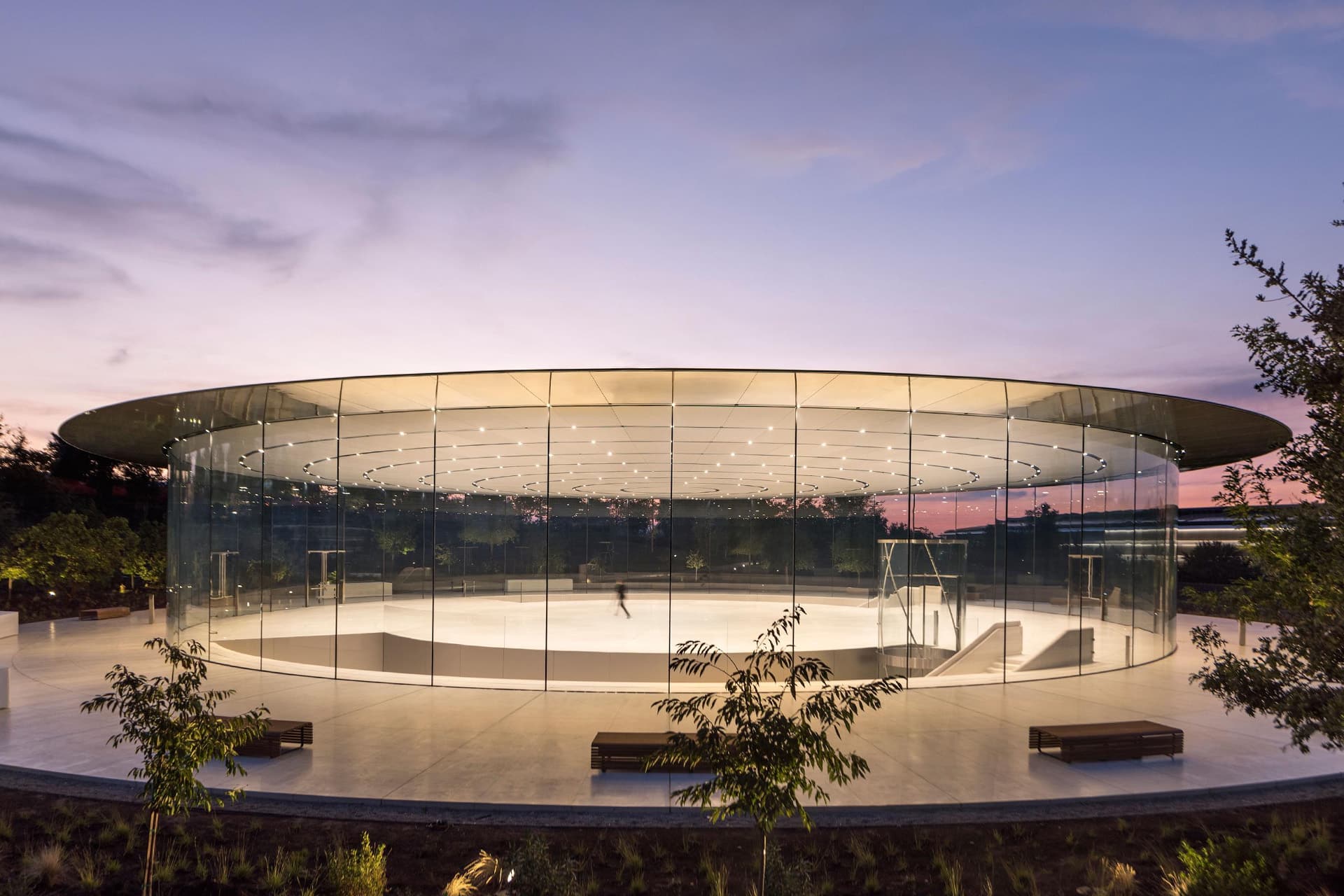

The most celebrated example of Apple Park’s engineering is the ground-level entrance to Steve Jobs Theater.
The auditorium itself sits underground. Above it, visitors enter through a circular glass pavilion measuring approximately 135 feet across and 22 feet high. Resting above that cylinder is a lens-shaped carbon-fiber roof weighing 80.7 tons.
The striking detail is not simply that the roof appears to float. It is supported entirely by four layers of structural glass. There are no conventional columns interrupting the circular lobby.
Glass is normally understood as a transparent enclosure placed between structural elements. At the theater, it performs both jobs. The walls provide uninterrupted views while carrying the roof above them.
That becomes far more impressive in person because the roof’s visual lightness conflicts with its true mass. Its broad edge seems to hover over the pavilion, while the transparent cylinder beneath it almost disappears against the surrounding landscape.
The entrance was designed as a quiet object in the park rather than a monumental façade. Its apparent simplicity conceals demanding structural calculations, custom glass fabrication and connections engineered to withstand weight, wind and seismic movement.
An Elevator That Rotates as It Descends
The theater’s glass elevator offers another detail that photographs rarely explain.
As it descends from the entrance lobby to the underground auditorium, the elevator rotates approximately 171 degrees. The movement reorients passengers toward the lower-level arrival space without requiring a conventional turning corridor.
Its helical guide rails and moving cabin create a transition that feels effortless, although the mechanism is highly specialized. The experience turns a functional journey between floors into part of the building’s choreography.
Apple also used a chemical tempering process for the elevator’s glass enclosure rather than relying only on traditional heat treatment. The objective was to preserve transparency and structural strength while maintaining the restrained appearance of the surrounding pavilion.
This is typical of Apple Park: technical complexity is often used to remove visible machinery rather than display it.

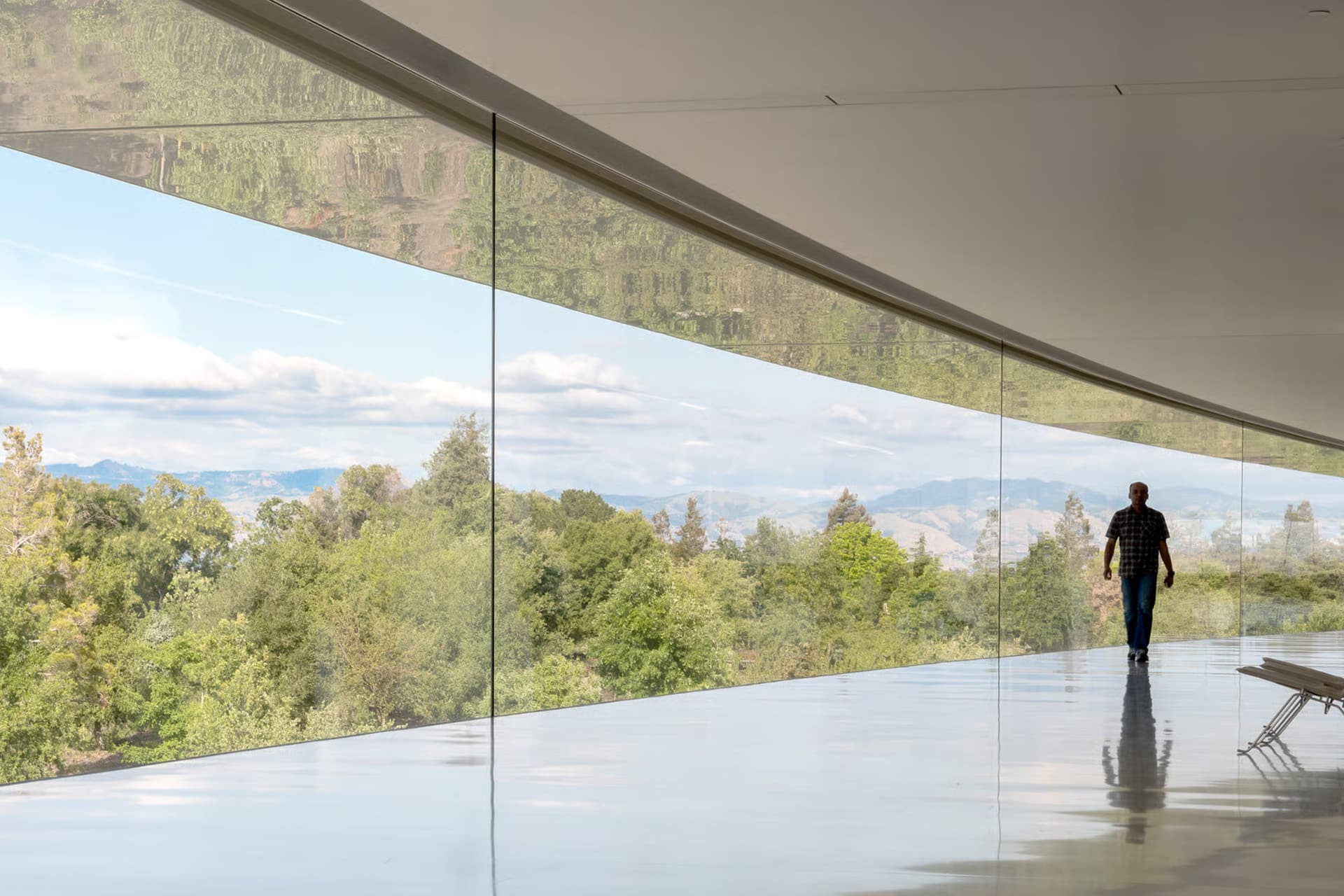

The Ring’s Curved Glass Changes With Every Step
The Ring contains some of the largest curved glass panels ever installed in a building. They form both its exterior perimeter and the inner edge facing the landscaped courtyard.
From a distance, the glass makes the building appear as one continuous band. At closer range, the curve constantly changes reflections as a person walks beside it.
Trees, sky, interior furniture and passing people move across the surface at different angles. A section that appears transparent from one position can become highly reflective a few steps later.
The effect prevents the façade from feeling static. Although the Ring follows one continuous geometric form, its appearance changes with daylight, weather and movement.
The glass also allows broad walkways and work areas to remain visually connected to the landscape. Employees can look outward toward the park or inward toward the central courtyard without the narrow window openings of a conventional office building.
This uninterrupted visibility was central to the campus concept. The architecture attempts to place workspaces inside nature rather than separate them from it with heavy walls.
The Floor Structure Is Hidden in Plain Sight
The Ring’s apparent simplicity depends on an enormous precast concrete system.
More than 4,000 concrete floor slabs span distances of up to approximately 48 feet. Known as hollow slabs, many include channels that support heating, cooling and air movement.
These components allow the building to reduce the need for visible mechanical equipment. Systems that would normally occupy suspended ceilings or obvious ductwork are integrated into the structure.
The concrete also helps regulate interior temperature by absorbing and releasing heat. Apple Park can use natural ventilation during suitable periods of the year, reducing dependence on conventional air conditioning.
Visitors do not normally see this engineering. They experience quieter ceilings, uncluttered rooms and fewer visual interruptions.
That is one of Apple Park’s defining qualities. Many of its finest details are successful precisely because they disappear.
The Visitor Center Uses the Same Visual Language
The Apple Park Visitor Center is not a miniature version of Steve Jobs Theater, and its roof should not be confused with the theater’s glass-supported structural achievement.
It does, however, use a related architectural language. A thin carbon-fiber roof extends over transparent walls and shaded terraces, giving the building a light horizontal profile.
The roof is supported through the building’s structural cores rather than entirely by the glass façade. Its importance lies less in a record-setting engineering solution and more in how it frames public views of the campus.
From the roof terrace, visitors can see sections of the Ring rising behind mature trees. The headquarters is deliberately difficult to view in its entirety from ground level.
Inside, stone staircases, terrazzo flooring, timber ceilings and large glass panels repeat materials used across Apple Park. The transitions between them are controlled with narrow joints and precise alignments.
Floor seams, ceiling lines, door edges and furniture appear to follow the same geometric order. Nothing looks casually positioned after construction.
The Landscape Conceals the Building’s Scale
Apple Park occupies 175 acres, but much of the site is devoted to trees, grasslands, walking paths and planted areas rather than visible buildings or surface parking.
Thousands of trees were planted, including oak and fruit varieties connected to the agricultural history of the Santa Clara Valley. Parking and service infrastructure were placed largely underground or behind landscaped areas.
The Ring therefore appears to emerge from a park rather than sit inside a conventional corporate complex.
This becomes apparent when seen from the Visitor Center. Instead of dominating the horizon, large portions of the headquarters disappear behind layered vegetation.
The landscaping also changes with the seasons. Grasses dry and shift in color, fruit trees develop blossoms, and moving shadows alter the paths and façades throughout the day.
Apple Park treats those changes as part of the architecture. The building is intentionally stable and precise, while the landscape around it is allowed to grow, move and age.

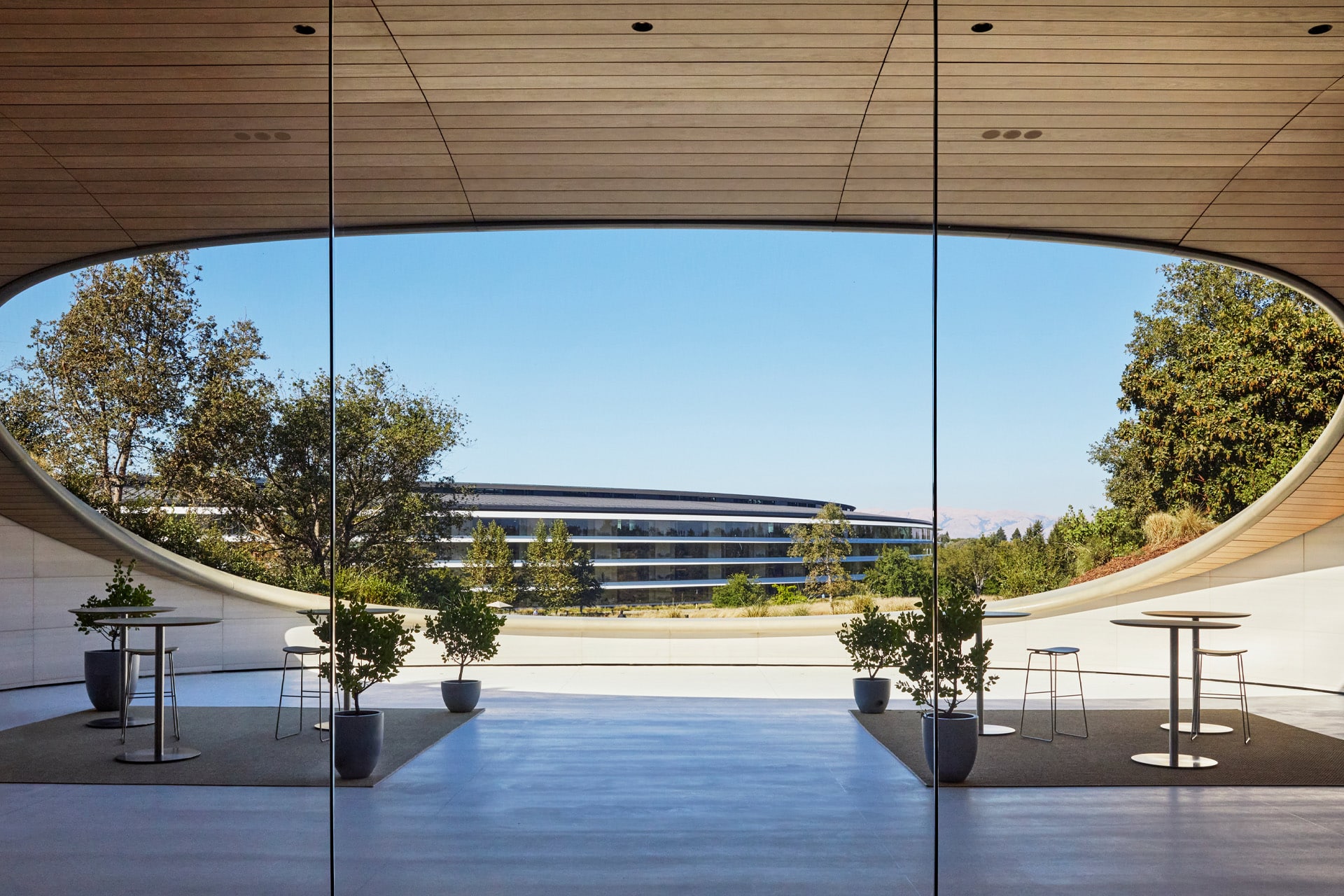

The Observatory Almost Disappears Into the Ground
The Apple Park Observatory extends this relationship with the landscape.
Introduced as a private venue for product demonstrations and guest experiences, the building is largely embedded into the earth. Its curved walls and planted roof reduce its visible profile.
A large oval window opens toward the campus landscape, creating a controlled view rather than a broad transparent perimeter.
The Observatory demonstrates a different form of restraint from the Ring or theater. Instead of making a heavy roof appear to float, it makes much of the building disappear underground.
Rainwater collection, natural planting, solar energy and filtered ventilation support the campus’s environmental systems while remaining secondary to the visitor experience.
The Precision Appears at Every Junction
Apple Park’s design discipline is easiest to identify where two components meet.
Stone reaches glass without bulky trim. Door systems disappear into wall openings. Floor joints align with architectural axes. Ventilation, lighting and speakers are integrated rather than attached as visible afterthoughts.
Even large moving elements are designed to look calm. The Ring’s dining areas include enormous glass doors that can open the interior toward the landscape. Their mechanisms perform difficult work without visually dominating the space.
This precision does not mean every decision is universally successful. Apple reportedly added visibility markings to transparent glass after employees walked into walls during the campus’s early use.
That episode illustrates the tension between visual purity and human behavior. A surface designed to disappear may sometimes disappear too effectively.
Apple Park is most inventive when its engineering produces an experience rather than a spectacle. The Steve Jobs Theater roof seems impossible because its support has been made transparent. The Ring seems lighter because its mechanical systems have been absorbed into concrete. The campus seems smaller because trees conceal much of its mass.
From the air, Apple Park is one enormous circle. In person, its character is found in the opposite direction: the almost invisible details that allow a complex building to appear simple.
